Automatically produce consistently uniform kettle style potato chips with the Heat and Control Batch Fryer

描述

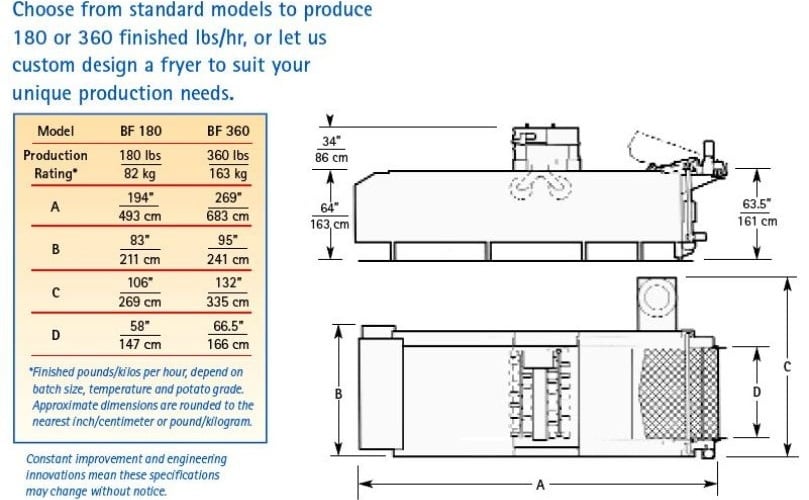

Using traditional low temperature cooking, the Heat and Control standard models Batch Fryer are rated for 180 and 360 finished lbs/hr of hard bite kettle style potato chips. Depending on your product characteristics, output can be more.

Complete combustion system is piped and wired, ready for connection to your natural gas line.

(Click to enlarge)

Superior oil quality

With no heat transfer tubes immersed in the oil, our unique under-pan fired design allows cooking with as little as 4" of oil depth. Low oil volume produces rapid oil turnover for the freshest chips with a long shelf life.

Oil level control

Automatic oil level control continuously compensates for oil carried out of the fryer with finished chips.

Automatic slice stirring

Optional Chip-Stirr® system stirs slices automatically during cooking and then directs the finished chips to the discharge/drain conveyor. Eliminating the costly, hazardous task of manual stirring, Chip-Stirr prevents slice clusters, allows one operator to monitor multiple fryers, and assures consistent chip quality from batch-to-batch.

Full PLC control

For repeatable quality in each batch, a Programmable Logic Controller automatically controls potato feed, frying, stirring, finished chip unloading, and initiation of the next batch.

Manufacturer

Heat and Control

Heat and Control 集团是产品工艺方面的技术专家，致力于运用科学和想象力推动新型食品、医药和其他行业的发展。
