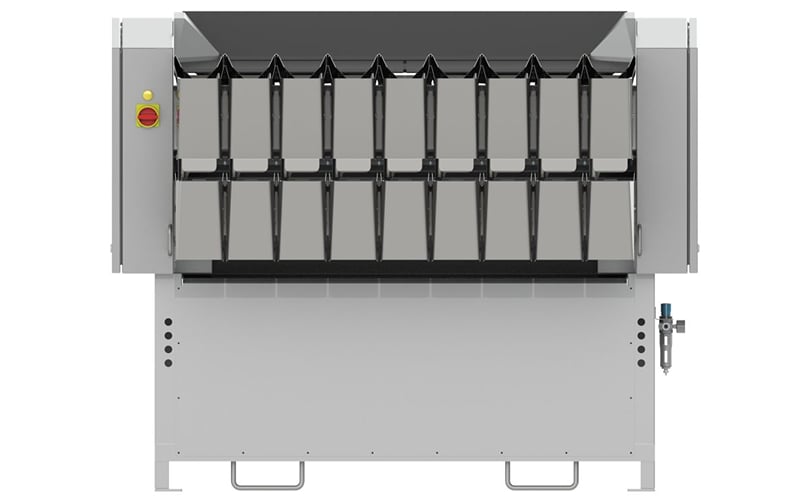

Newtec Weighing Machine 4009B2
Beschrijving
The Newtec Weighing Machine 4009B2 is designed for accurate, medium speed for smaller products such as potatoes, carrots, onions, citrus and other similar fruits and vegetables.
Advantages
- High weighing accuracy: Typical giveaway: less than 0.2%
- High speed – up to 50 portions / min. at 2 kg.
- Flexible system to handle large as well as small vegetables and fruits
- Gentle product handling with low drop height
- Option: Newtec WebServices for remote servicing, data collection and analysis
- Option: Newtec MachineLink for easy control of more Newtec machines from only one touchscreen
Applications | Potatoes, carrots, onions, citrus and other similar fruits and vegetables. |
---|---|
No. of weigh heads | 9 |
Width of weigh heads | 130 mm |
Portion sizes | 0.5 - 2.5 kg |
Speed | Up to 60 portions/min. |
Product size | Ø: 20 - 120 mm, L: 20 - 230 mm |
Dimensions without Portion Collection System | W: 1710 mm, H: 1404 mm, D: 1472 mm |
Air consumption and pressure | 65 NL/min., 6 bar (0.6Mpa) |
Electricity consumption | 3x230 VAC or 3x400 VAC (N) PE 50/60 Hz 3-6 kW |

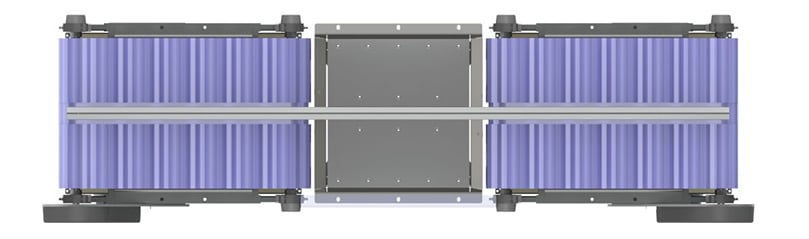

Select belt/outlet option
![C C](https://media.potatopro.com/newtec-4009b2-belt-c-1200.jpg?width=809)
C
- L - Speed (up to) 60 portions/min.
- L+R - Speed (up to) 30 portions/min. per outlet
- C - Speed (up to) 60 portions/min.
