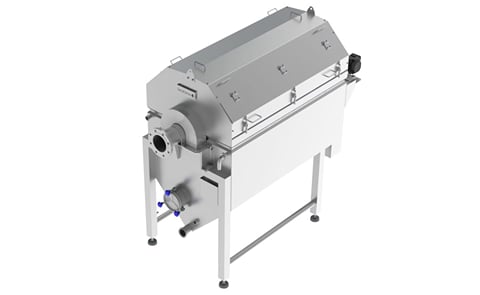

The SiccaDania refining sieve is developed for the separation of solids from process fluids. It is equipped with an effective and fully automatic drum cleaning system and is especially suitable for separating fibers from fluids.
Fluid with coarse particles and fines enter the sieve drum. The fluid leaves the drum through the sieve lining and is collected in the buffer tank underneath. Solids are pushed along to the far end of the drum by means of a ribbon screw. In this action, it is further dewatered. Finally, the solids leave the sieve-drum through the solids outlet.
Design
The refining sieve is equipped with a drum frame with an integrated ribbon screw. The frame is lined with sieve material. The simple fastening system warrants quick exchange during maintenance. A drum cleaning spray pipe operated by means of a timer-controlled valve prevents the lining from plugging.
SiccaDania supplies the refining sieves in different sizes to fit any capacity up to about 150 m3 per hour. The refining sieve which is characterized by simple and robust construction is maintenance-friendly.
The broad range of applications:
- Potato processing industry
- Starch and flour industry
- Pulp and paper industry
- Vegetable and fruit processing industry
- Waste processing industry
- Chemical industry
