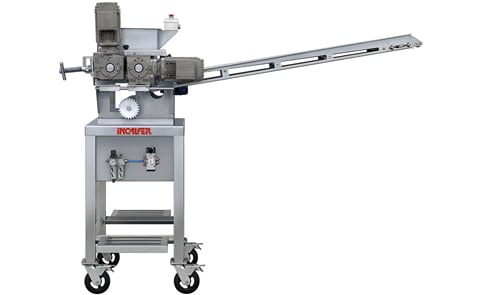

The Triangle Cutting Laminator is designed to laminate corn dough and cut it into triangle-shaped chips, making it an essential component in nacho or tortilla chip production lines.
Functionality:
- The system uses two heavy-duty rolling rollers (215 mm diameter × 450 mm width) constructed from thick stainless steel to laminate the dough to a uniform thickness.
- A cutting roller made from UHMW plastic shapes the laminated dough into standard-sized triangular tortilla chips.
- The cutting system uses a metal wire with adjustable fixatives operated by a compressed air cylinder, allowing precise control over the cutting process.
Drive & Control System:
- Powered by a geared motor with frequency converter, allowing variable speed control. Equipped with a safety switch for secure operation.
Discharge Conveyor:
- Features a 400 mm wide by 800 mm long discharge conveyor, driven by a worm gear motor.
- Includes a hopper crown and removable covers for easy cleaning and maintenance.
Construction:
- Built with robust and heavy-duty framing for industrial durability.
- All components in contact with the product are made of AISI 304 stainless steel, ensuring food safety and hygiene.
This machine ensures uniform lamination and precise cutting of dough into triangular chips, critical for consistent shape, texture, and cooking results in high-volume snack production.
