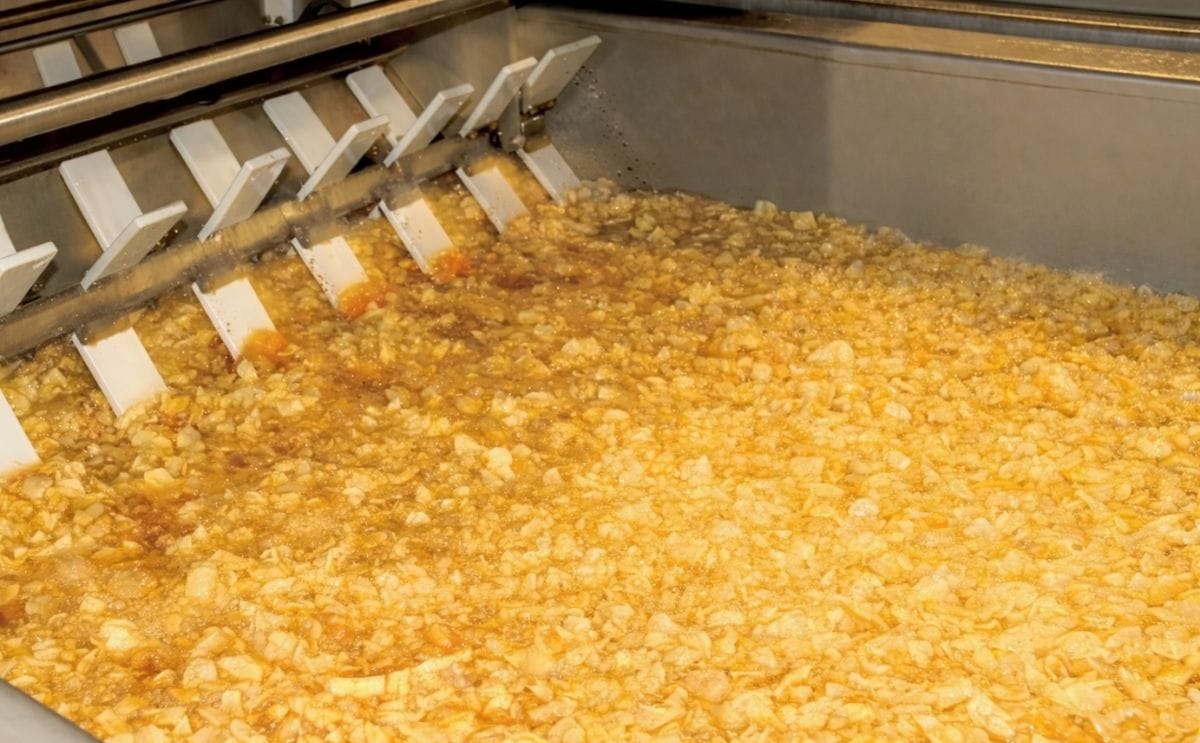

Batch Potato Chips Frying in a Mastermatic LDKF Batch Fryer

六月 13, 2017

来源

Heat and Control

Potato Product Fryers 101:
Selecting the right fryer design

As PotatoPro, we believe that selecting the right fryer design is one of the most critical decisions in potato processing. We also find that its importance is often underestimated.

That's why we are pleased to offer you this article by Don Giles, Director of Sales, Processing Systems at Heat and Control. In this article he provides an overview of the different fryer types available and explains how specialised fryer designs can improve productivity and quality.

Batch Fryers

Batch fryers are used exclusively for hard bite, slow cooked potato chips due to their unique temperature profile.

The high-moisture content of potatoes requires a specially designed batch fryer. Potato-specific batch fryers use a kettle of static, hot oil – direct-heated by a gas burner firing under the fryer pan or by heat-transfer tubes immersed in the oil. These tubes can be heated by a gas burner, steam, or thermal fluid.

Potato Chips

As each batch of potato slices enters the oil, the cooking oil temperature drops and then gradually increases as the burner fires to regain the proper frying temperature. This “inverted bell curve” temperature profile produces the distinctive hard-bite texture that has made these chips the fastest-growing segment of the potato chip market.

The art of adjusting this oil temperature profile gives processors the ability to create subtle differences in chip texture. Once these cooking parameters are set, sophisticated batch fryers use a Programmable Logic Controller (PLC) to assure repeatable frying of each batch of chips. Batch fryer capacities range from 35 to over 500 pounds, (15 to 225 kilograms) of finished potato chips per hour.

Advantages of Batch Fryers

(Click to enlarge)

Heat and Control Batch Potato Chip Fryer with Chip-stirr slice stirring system

Low cost (compared to continuous fryer systems)
Adjustable temperature curve produces chips with unique textures
Slice stirring systems unload the finished chips and enable one operator to handle multiple batch fryers
Minimal floor space
Versatility: cooks other types of root crops in addition to potatoes

Limitations of Batch Fryers

Production capacity is limited by the fryer’s surface area and heat input capability
Automatic stirring systems eliminate the hazardous, labour-intensive task of manual stirring
Product must be stirred for uniform cooking and to prevent slices from sticking together in clusters
Large oil volume with relatively slow oil turnover rate
Some older models provide only partial removal of fines, leading to degrading oil quality and leaving black specks on the chips

Continuous Fryers

There are numerous designs of continuous fryers, varying in heat load, product handling, oil filtration, and production-capacity, however all commonly cook a continuous flow of product.

Potato products such as potato chips, sticks, potato co-products such as tots and patties, french fries, or batter-coated fries require an externally-heated continuous fryer design due to the large amount of moisture that must be boiled off during the frying process, as well as factors such as:

Responsive, accurate, and consistent temperature control
Higher thermal efficiency than direct-heating
Heat load is not limited by size of fryer due to the fryer and heat exchanger being sized separately
Higher capacity production
Lower system oil volume (including fryer, heat exchanger, fiter, and piping) than direct-heated fryers
Continuous removal of product particles
Rapid oil turnover rate
Oil flow is adjustable to match product flow rates
Minimal cleaning required as fine particles remain suspended in the circulating oil for more efficient removal

Continuous fryers are available for 200 to 6,500lbs (90 to 2,900kg) of finished potato chips per hour and over 50,000lbs (22,000kg) of par-fried french fries per hour.

Potato Chips: Fried, Kettle Fried or Continuously Kettle Fried

External-heat exchangers heat cooking oil using gas or light oilburners, steam, or thermal fluid. These fryers continuously circulate oil through a filter, an external-heat exchanger and single or multiple inlets and outlets in the fryer.

Continuous oil circulation provides multiple advantages:

Maintaining a consistent oil temperature and temperature drop through the fryer
Separating and advancing products through the fryer for uniform cooking without clusters
Keeping product particles in suspension for more-efficient filtration and clean fryer operation

Unique characteristics and production capacities of different potato products have prompted the development of specially-designed continuous fryer systems, including Multi-Zone Fryers, Multi-Stage Fryers, Thermal-Fluid-Heated Fryers, and Vacuum Fryers.

Multi-Zone Fryers

(Click to enlarge)

Heat and Control Multi-Zone Continuous Potato Chip Fryer

In Multi-Zone fryers, oil is introduced and removed at different points along the length of the fryer pan to provide accurate control of the temperature drop that occurs during cooking, known as Delta-T.

This enables processors to develop custom colour and texture characteristics for different products. It also permits frying at lower temperatures, which produces lighter colour product and reduces oil degradation.

Multi-Stage Fryers

(Click to enlarge)

Two Stage Heat and Control Fryer for coated French Fries (More on this fryer)

Multi-Stage Fryers are a variation of the multi-zone design and provide a greater range of frying temperatures.

Each fryer stage uses a separate continuous oil filter, oil-circulation pump, and heat exchanger.

Multi-stage fryer systems are especially useful for batter-coated fries, french fries, or fine particle-intensive co-products.

Thermal-Fluid-Heated Batch Fryers

This direct-heated fryer uses a patent-pending thermal-fluid heat exchanger that heats oil uniformly throughout the fryer.

A fines removal conveyor and spacing between the heat transfer tubes prevent product particles from accumulating inside the fryer.

Vacuum Fryers

(Click to enlarge)

Heat and Control unitized Vacuum Fryer (More on this vacuum fryer)

Operating at 10 percent or less of normal atmospheric pressure, a vacuum fryer boils off product moisture at a lower temperature than traditional fryers.

This means high-sugar content potatoes can be fried without browning of finished chips. Formation of acrylamide can be controlled because oil temperature can be kept below the 248°F /120°C point at which acrylamide forms.

Heat and Control's advanced vacuum fryer design requires no external-vacuum enclosure and takes about the same floor space as a traditional, externally-heated, continuous fryer.
